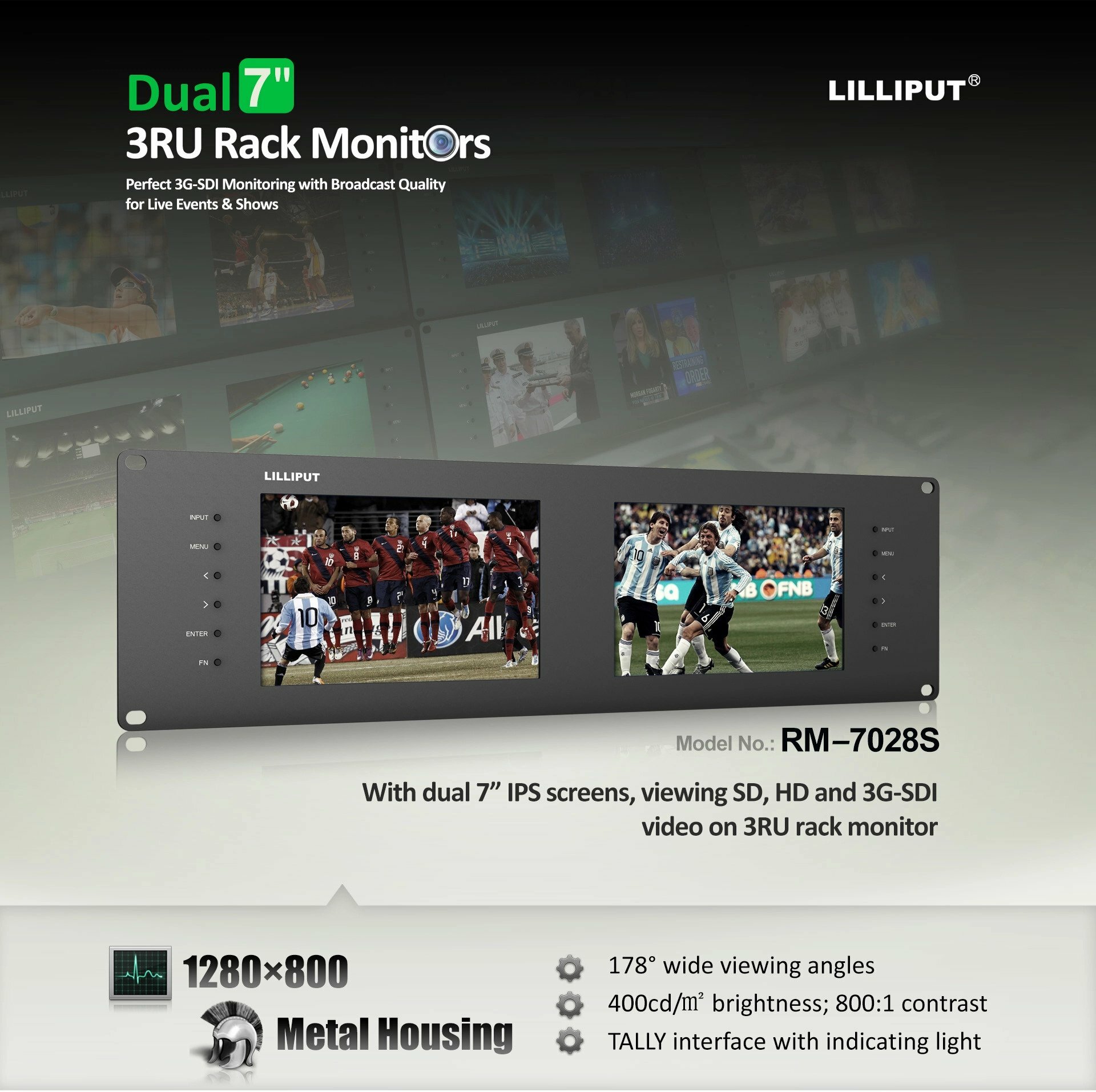

Lilliput 7" 3RU rack monitors are the best solution for high quality SDI monitoring! They have a various of use for broadcast, on-site monitoring and live broadcast van, etc! As well as setup a video wall of rack monitors in control room and see all the scenes.
A rack for a customized monitoring solution also can be supported for viewing images displays from different angles.
Because of better filtering and scaling advantages, Lilliput's 3RU rack monitors are really suitable for broadcast quality monitoring system. With high quality SD, HD & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently. Highly integrated Tally port and Tally description, which are ideal for large broadcast systems.
Using laptop, Mac or PC to set and adjust each monitor easily with relevant softwares via Ethernet network.
Excellent Display & Design
Lilliput's dual 7" rack monitors feature two attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast, and faster response time; that providing excellent viewing experience. Metal & thin housing design is also welcomed by live events and shows.
2 x 7 inch monitor with wide screen aspect ratioThe RM-7028S features 2 x high definition IPS screens for amazing picture quality at an affordable price |
|
178 degree viewing angleWide angle viewing allows the operator to see both monitors from one position, and opens up the rest of the technical team chance to see the show too |
|
400 cd/m brightnessHigh brightness panels let you view the screens comfortably in daylight. Perfect for gigs in the open air such as festivals |
|
800:1 Contrast RatioCrisp deep colours are possible with high contrast ratio monitors, letting you see accurately what is happening on your colour |
|
Multiple connectivity optionsCheck out the specification for the up to date information on the range of input options available on the product |
Display | |
Size | 7” |
Resolution | 1280×800 |
Brightness | 400cd/m² |
Aspect ratio | 16:10 |
Contrast | 800:1 |
Viewing Angle | 178°/178°(H/V) |
Video Input | |
SDI | 2×3G |
HDMI | 2×HDMI 1.4 |
YPbPr | 2×3(BNC) |
Composite | 2 |
Video Loop Output | |
SDI | 2×3G |
HDMI | 2×HDMI 1.4 |
YPbPr | 2×3(BNC) |
Composite | 2 |
Remote Control | |
LAN | 1 |
TALLY | 1 |
Supported In / Out Formats | |
SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
Audio In/Out (48kHz PCM Audio) | |
SDI | 12ch 48kHz 24-bit |
HDMI | 2ch 24-bit |
Power | |
Operating power | ≤18W |
DC In | DC 7-24V |
Environment | |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
Other | |
Dimension(LWD) | 482.5×133.5×25.3mm |
Weight | 2885g |
